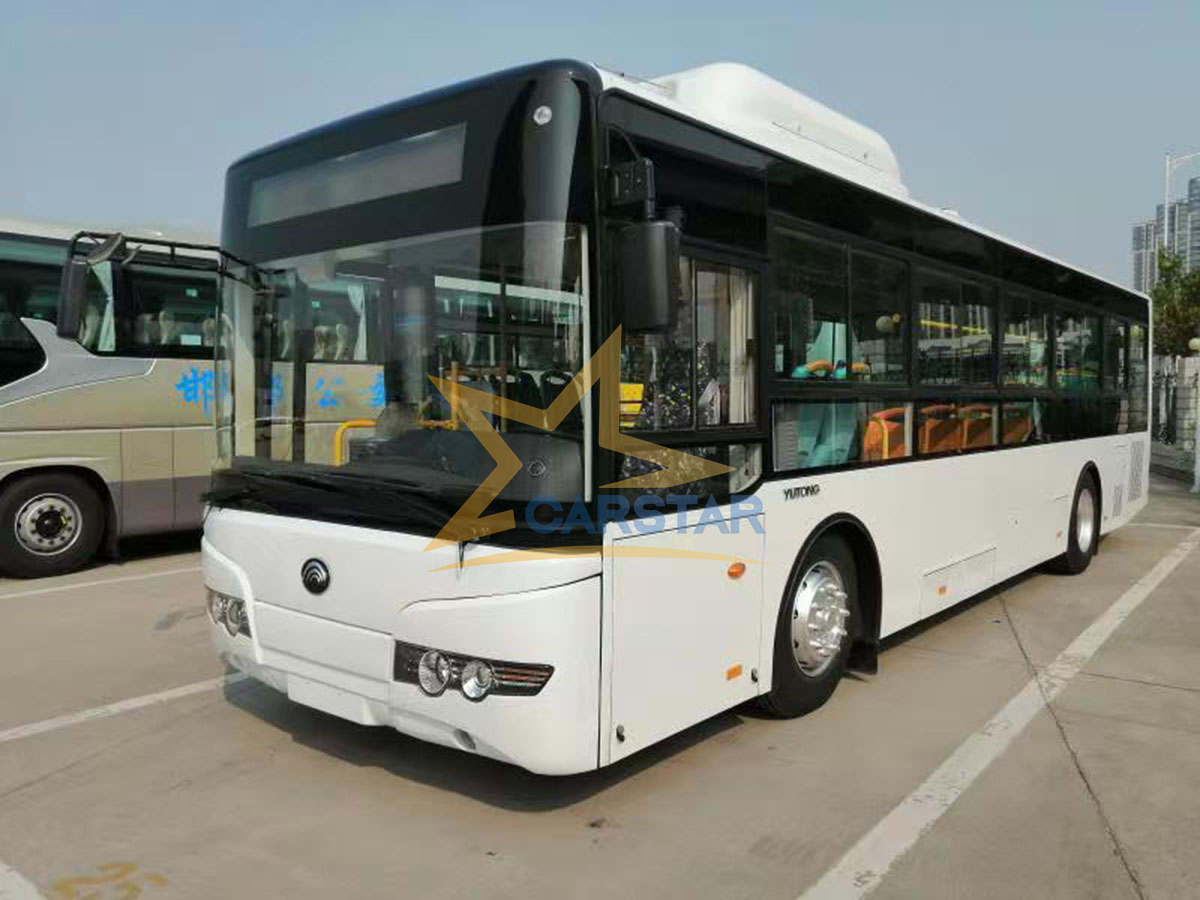

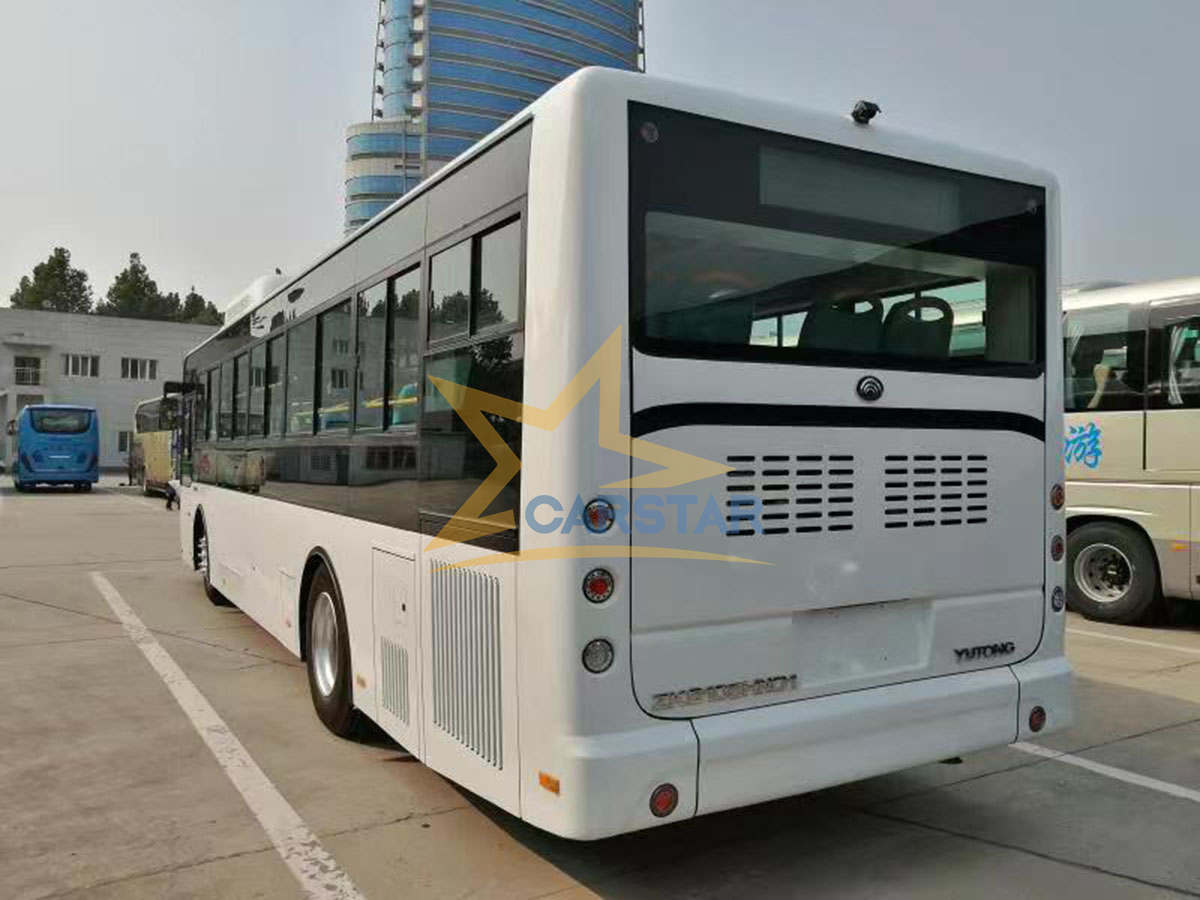

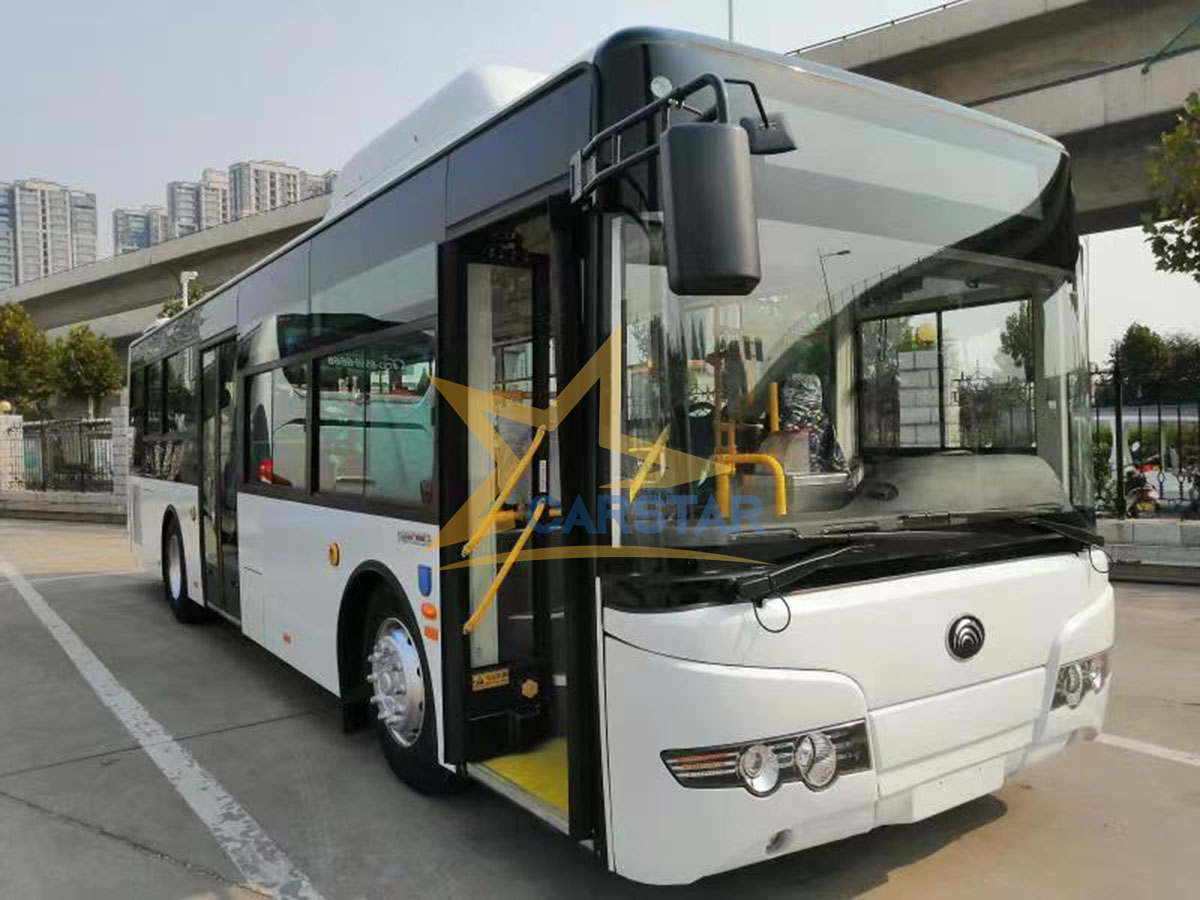

| model | ZK6105HNGS1 | ||
| usage | Bus | ||
| body length | 10500mm | ||
| body width | 2500mm | ||
| body height | 4160mm | ||
| curb weight | 12000,12600kg | ||
| total mass | 18000kg | ||

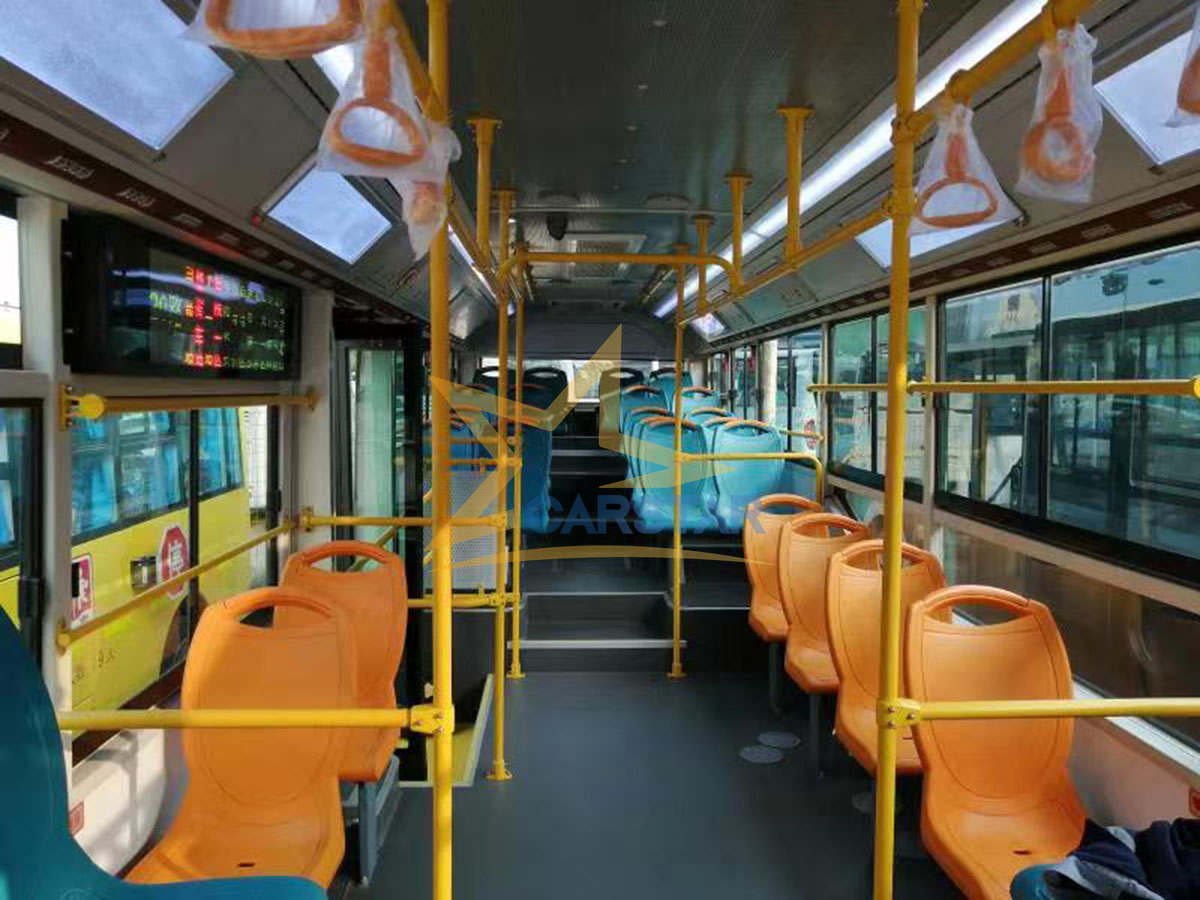

| seats | 92/24-66,82/24-66 | ||
| top speed | 69km/h | ||
| Chassis parameters/configuration | |||
| Chassis model | load-bearing body | ||
| front suspension rear suspension | 1940/3160mm | ||
| Number of spring pieces | 3/4,-/- | ||
| number of axes | 2 | ||
| wheelbase | 5400mm | ||
| Axle load | 6500/11500kg | ||
| Front track | 2103mm | ||
| rear track | 1860mm | ||
| approaching the departure angle | 8/7° | ||
| tire | |||
| Number of tires | 6 | ||
| Tire specifications | 275/70R22.5,295/80R22.5 | ||
| Engine parameters | |||
| engine model | engine brand | engine power | Displacement |
| YC6L260N-52 | 191kw | 8424ml | |
| YC6L280N-52 | 206kw | 8424ml | |
| Remark | |||
| Remark | 1. Optional air conditioner; 2. When the kerb weight is 12600kg, the maximum number of occupants is 82, when the kerb weight is 12000kg, the maximum number of occupants is 92, and the maximum net engine power: 197KW (YC6L280N-52), 182KW (YC6L260N-52). ABS model/manufacturer: ABS-E 4S/4M/WABCO Automotive Control System (China) Co., Ltd. | ||
