Fuel Tank Semi Trailer

Brand:Carstar
Horsepower: 0
Axle: 0
Seaprot: QINGDAO
Delivery time: 15 DAYS
Service: Replacement
Payment: 24 Months

Talk Us Send Inquiry WhatsApp

Advantages

Refurbish Technology
Within safe limits, we can make a range of changes to the product.

Repair Parts Available
During the life cycle of the product, we provide various components for a long time.

Technical Support
Our engineers are always online to answer all kinds of questions.

Cheaper Than Other Supplier
We have strong bargaining power based on our large acquisitions.

Description

Introduction

Semi-trailer tank trucks are tank trucks that use tractors to connect the trailer part. Compared with ordinary single tank trucks, semi-trailer tank trucks can effectively improve transportation efficiency. In the case of the same tonnage, it reduces transportation costs and saves fuel consumption. The rear part of the semi-trailer tanker is basically the same, there are two rear axles (two axles) and three rear axles (three axles). Choose the tractor according to your needs.

Specification

item	Parameter
Use	Truck Trailer
Type	Semi-Trailer
Material	Steel
Certification	iso
Size	10500X2500X3750mm
Place of Origin	Henan, China
Brand Name	Carstar
Product name	Fuel Tanker Trailer
Axle	3axles
Suspension	Mechanical Suspension
Function	Transport Fuel
Tire	12.00R20
Color	Customers Optional
King pin	2"(50mm)or3.5"(90mm)
Landing Gear	Standard 28Ton
Brake System	Duel Line Brake System
Main Beam	Q345

1. The tank is made of 4mm or 6mm high-quality carbon steel produced by the Iron and Steel Company according to national standards. The shape of the tank is elliptical or square, and it can hold a variety of oils. It can also produce heating and heat preservation series tanks. 2. The materials and thickness of various vehicles of alcohol, chemical industry, various hydrochloric acid, sulfuric acid, lye tankers are different. 4. There are multiple anti-wave partitions in the tank. High-pressure gas leak testing is used to make the tank body have the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc. 5. Centrifugal pumps, gear pumps, stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow and fast suction speed. 6. Single-count and double-count flow meters can be used for the measurement of tank trucks, and it can also be equipped with a tax-controlled computer refueling machine, equipped with a 10-15 meter automatic retractable return reel, and equipped with a refueling gun. Edible oil products can be measured with an edible oil computer meter.

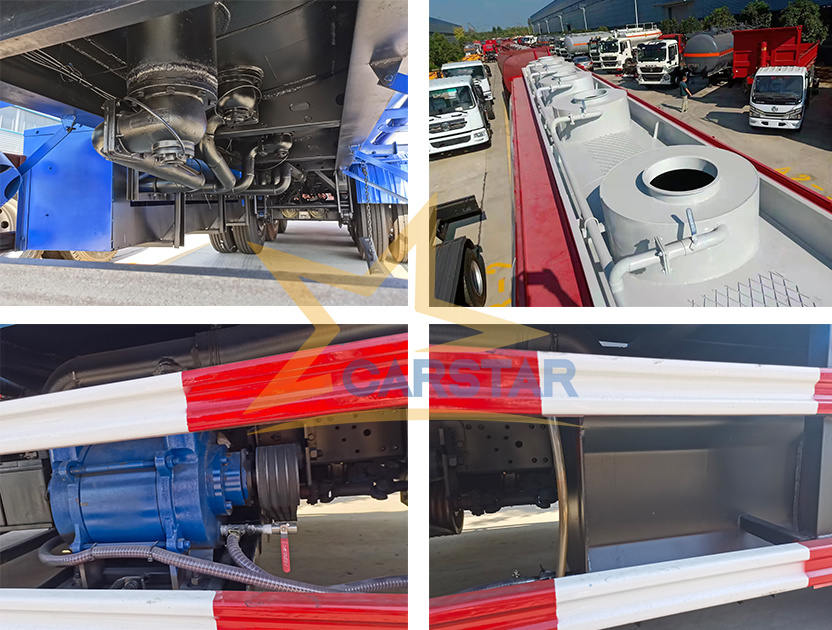

Details Images

Oil tank semi-trailers can also be divided into warehouses. Each warehouse needs a tank port (also called a manhole), which can be equipped with an anti-overflow probe, a subsea valve, an oil unloading connector (lower oil valve), and an oil vapor recovery valve. The submarine valve, also known as the emergency shut-off valve, is installed at the bottom of the dry tank and used when loading and refueling. It is easy to operate, time-saving, safe and environmentally friendly. The pneumatic shut-off valve is installed at the bottom of the tank body of the tanker, which can be loaded and refueled. The internal pressure of the valve is small and the flow rate is large. There is a cut-off groove on the flange of the valve body. Excessive force will automatically disconnect the car body pipeline from the tank body, while the automatic centering plunger and durable spring will still remain sealed, and the medium in the tank will not leak, thus ensuring the safety of the oil tank.

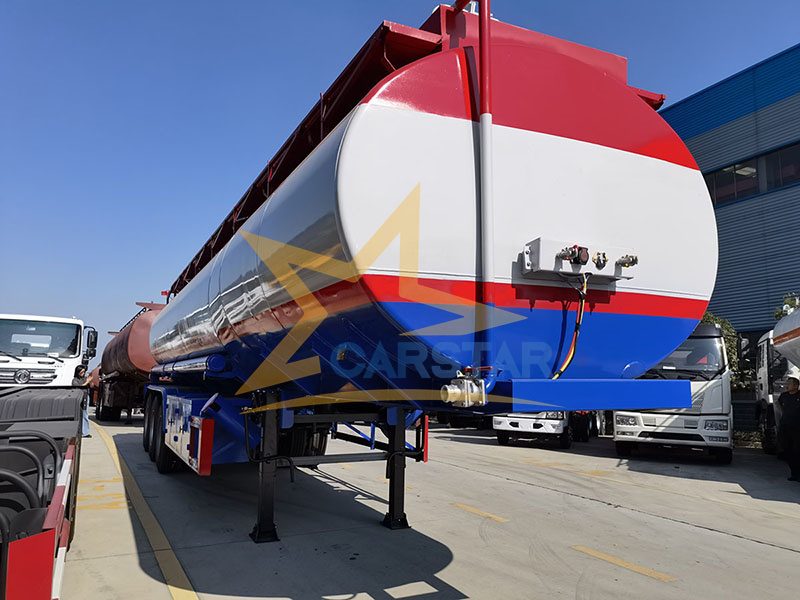

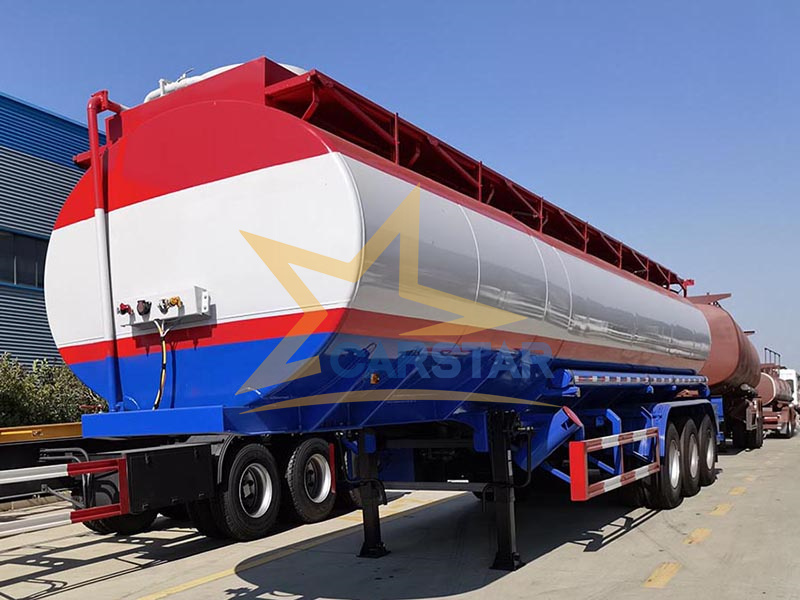

Product Pictures

Product Video

Fuel Tank Semi Trailer
