| VEHICLE SPECIFICATION | DESCRIPTION |
| Truck Model | ZZ5257GJBN3847W |

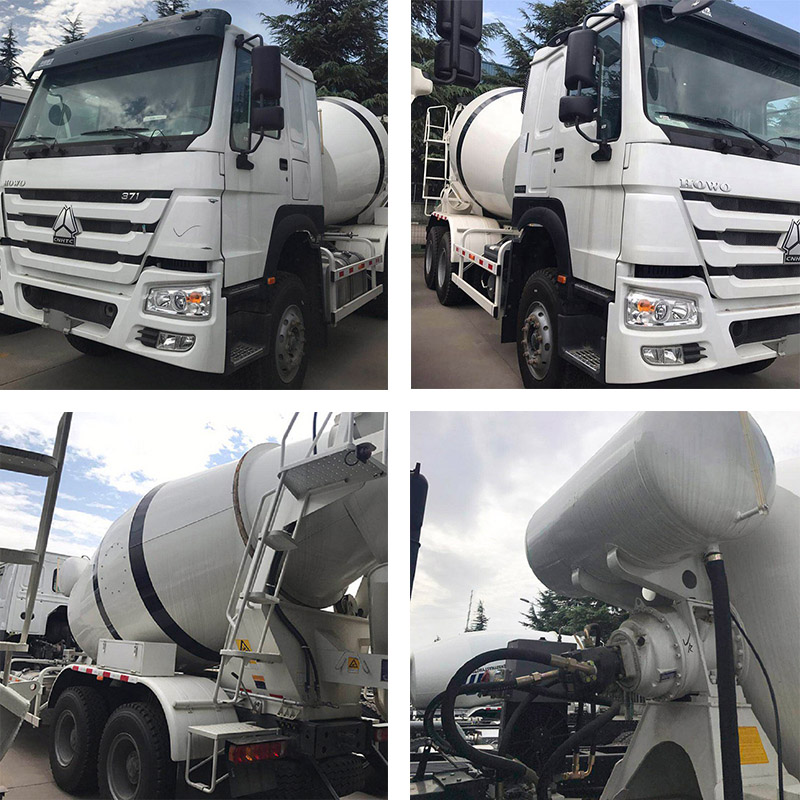

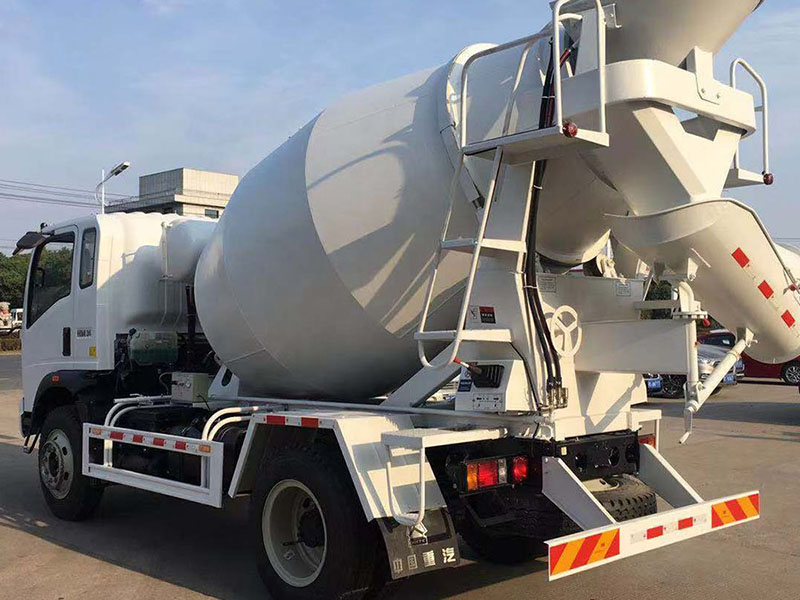

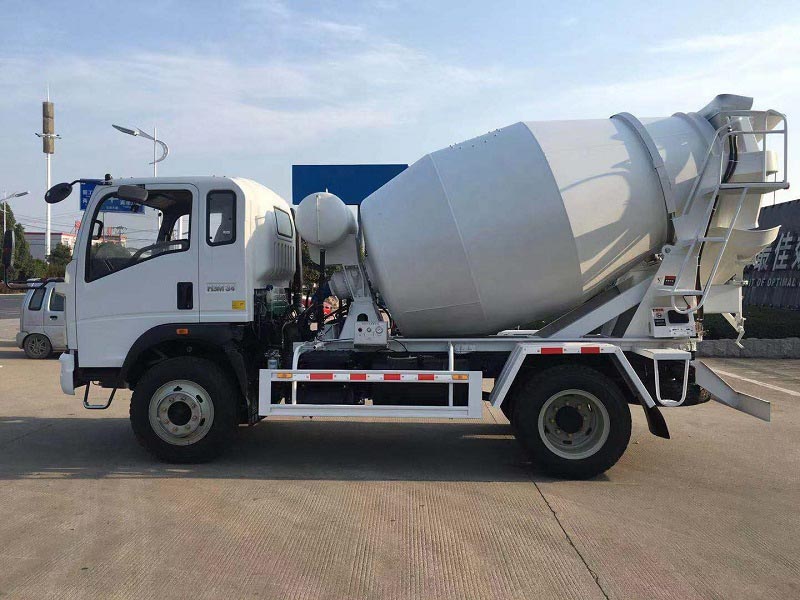

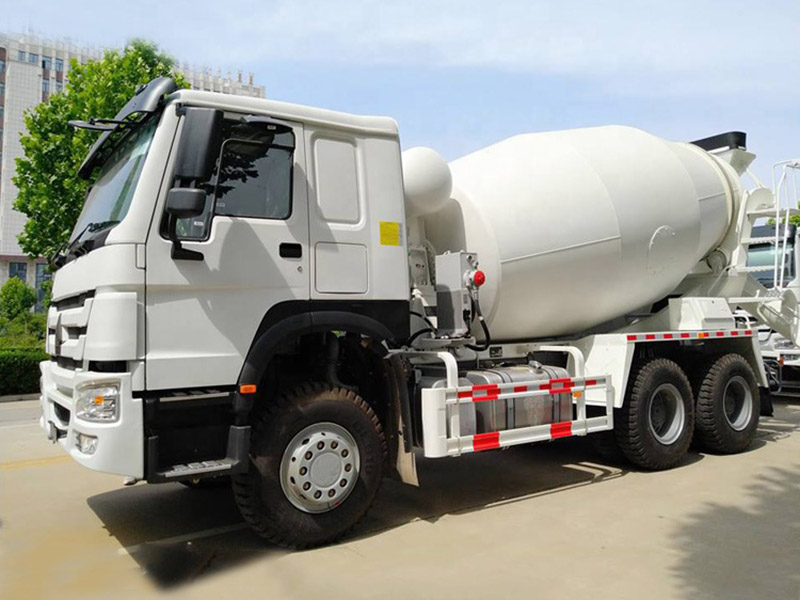

| Type of Vehicle | 10m3 Concrete Mixer Truck |
| Truck Brand | SINOTRUK—HOWO |
| Driving Position | Left Hand Driving |
| Total Weight | 25,000kg |
| Curb Weight | 10580 |
| Max speed(km/h) | 78 |
| Color | Optional |
| Chassis & Add Components | |
| Frame Details | parallel ladder with U-profiles and riveted cross members |
| Dimension(Lx W xH)(unloaded)(mm) | 9040x2496x3980 |
| Approaching angle/Departure angle(°) | 19/22 |
| Overhang(front/rear) (mm) | 1500/2365 |
| Wheel base (mm) | 3825+1350 |
| Engine | |
| Model | WD615.47 |
| Power | 371hp |
| Emission | EURO II |
| Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
| Kind of Fuel | Diesel |
| Clutch & Gear Box System | |
| Clutch | SINOTRUKΦ430mm diaphragm spring clutch |
| Gear Box | HW19710,10 forwards and 2 reverse. |
| Axles | |
| Front Axle Model | HF9 |
| Rear Axle | HC16 |
| Electrical System | |
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500w |
| Starter | 7.5Kw/24V |
| Brake System | |
| Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | |
| Model | 8118 |
| Wheels & Tyres | |
| Type | 12.00R20 |
| Material | Tubeless tire |
| Quantity | 10+1 spare |
| Cabin | |
| Type | HW76 standard cabin |
| single sleeper, with air-condition | |
| all-steel forward control,55ºhydraulically tiltable to the front | |
| arm windscreen wiper system with three speeds, |
