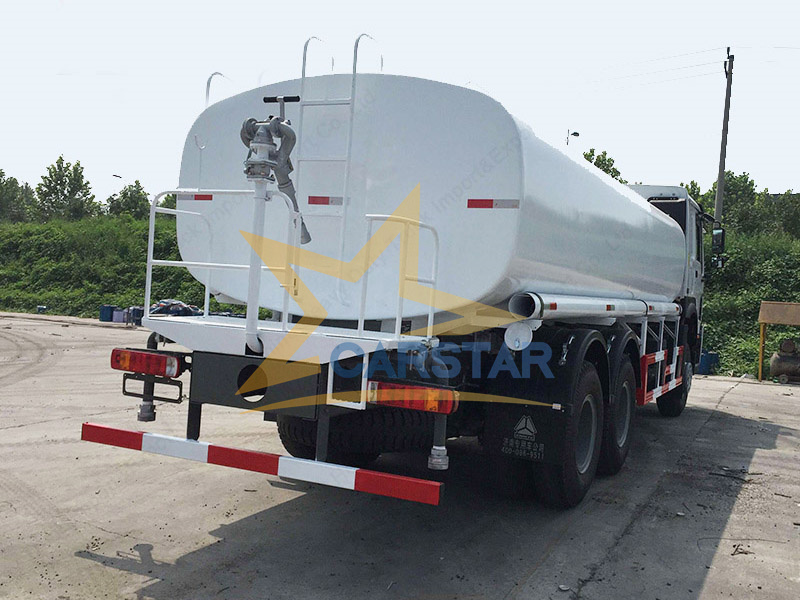

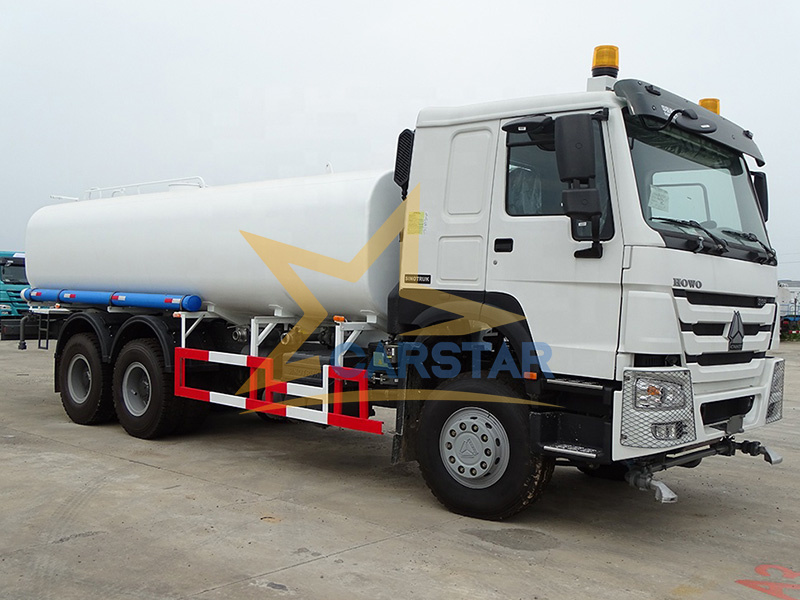

| Howo Water Sprinkler tanker truck | |||
| Vehicle Parameters | |||
| General | Vehicle Model | YZR5250GSSZ5 | |
| Vehicle Brand | XDR | ||
| Chassis Brand | Sinotruk | ||
| Overall Dimension(mm) | 9520×2500×3200 | ||
| GVW/Curb Weight(kg) | 25000/12170 | ||
| Chassis Parameters | |||
| Cab | Cab Seat | 2,3 | |
| Air Conditioner | Optional | ||
| Engine | Fuel Type | diesel | |
| Engine Model | WD | ||
| Engine Brand | Sinotruk | ||
| Power(hp) | 336 | ||
| Displacement(cc) | 9726 | ||
| Emission Standard | Euro5 | ||
| Chassis | Drive Type | 6*4 | |
| Transmission | 10 speed, Manual | ||
| Wheelbase(mm) | 4325+1350 | ||
| Tyre Specification | 11.00R20 | ||
| Tyre No.(pcs) | 10+1 | ||
| Max Speed(km/h) | 90 | ||
| Paint | Blue and White | ||
| Water Tank Structure Parameters | |||
| Tank Volume | 20000L | Tank Material | Carbon Steel |
| Tank Thickness | 5/5/3.5mm | Nozzle Sprinkling Width | ≥14m |
| Range of water cannon | ≥28m | Color and Logo | Optional |

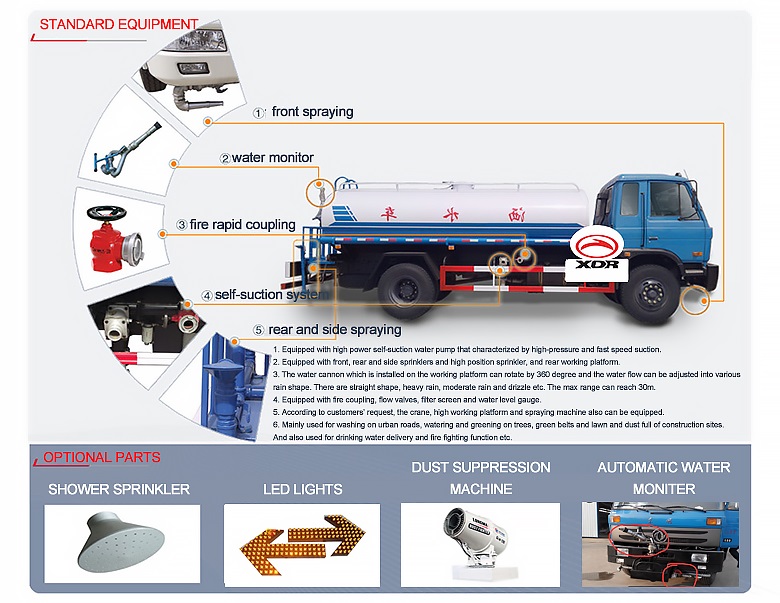

| Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. |
||
| Selective configuration | stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights |
||
| Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc. |
||
